| Tempat asal: | WUXI, CHINA |
| Nama merek: | WEIFU |
| Sertifikasi: | ISO9001, IATF16949 |
| Nomor model: | Katalis Mesin Diesel |
| Kuantitas min Order: | 50 pcs |
|---|---|
| Harga: | Negotiable |
| Kemasan rincian: | karton dan kotak kayu lapis |
| Waktu pengiriman: | 30-60 hari setelah menerima setoran |
| Syarat-syarat pembayaran: | <i>T/T 30% as deposit, and 70% before delivery.</i> <b>T / T 30% sebagai deposit, dan 70% sebelum pe |
| Menyediakan kemampuan: | 1.200.000 PCS per tahun |
| Nama Produk: | Katalis Oksidasi Diesel DOC | Bahan: | Keramik, logam |
|---|---|---|---|
| Bentuk: | bulat, persegi | Ukuran: | Dapat disesuaikan |
| Kepadatan Sel: | 200/300/400 CPSI | Aplikasi: | Mesin diesel |
| Model: | Universal | Standar emisi: | Euro 4, Euro 5, Euro 6, Tingkat 3, Tingkat 4, EPA3 |
| Tipe: | Three Way Doc Dalam Katalis Mesin Diesel Untuk Konverter Katalitik Truk Rompi Pada Truk Diesel | ||
| Cahaya Tinggi: | Three Way Doc Dalam Katalis Mesin Diesel,Katalis Mesin Diesel Untuk Rompi Truk,Katalis Monolit Rompi |
||

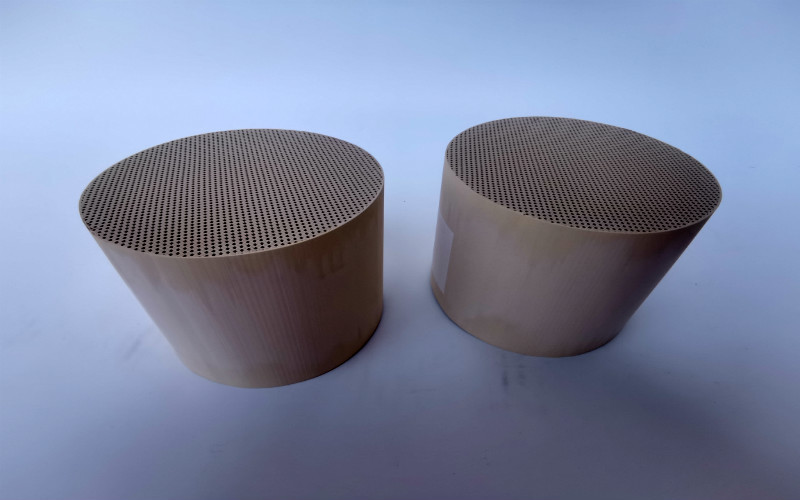

Sistem Setelah Perawatan Katalis Mesin Diesel Keramik/Logam/Wire-mesh
Katalis Mesin Diesel
Emisi dari mesin diesel semakin mengkhawatirkan regulator pemerintah di seluruh dunia.Mobil, truk, dan peralatan off-road yang menggunakan bahan bakar diesel adalah sumber hidrokarbon berbahaya (HC), nitrogen oksida (NOx), dan partikel (PM) yang mencemari udara dan terkait dengan penyakit pernapasan.
Teknologi katalis mesin diesel menggunakan teknologi washcoat yang dipatenkan WEIFU, yang secara tepat menempatkan logam mulia di dalam washcoat, menghasilkan beberapa manfaat penting:
Penggunaan logam mulia secara optimal
Biaya lebih rendah dan efektivitas lebih tinggi
Konversi CO, HC, dan NOx yang lebih tinggi pada berbagai kondisi
Katalis Mesin Diesel terutama mencakup jenis berikut:
Teknologi ini dapat dikombinasikan untuk memenuhi peraturan emisi.
Rute Teknis Mesin Diesel Tugas Berat:
Rute Teknis Mesin Diesel Tugas Ringan:
Spesifikasi dariDOC (Katalis Oksidasi Diesel):
| Spesifikasi dari Keramik DOC |
Kepadatan Sel (CPSI) | Standar Emisi |
| 101.6*123,3 | 300/400/600 | Euro 4/5/6 |
| 101.6*152.4 | 300/400/600 | Euro 4/5/6 |
| 101.6*50 | 300/400/600 | Euro 4/5/6 |
| 101.6*90 | 300/400/600 | Euro 4/5/6 |
| 110*100 | 300/400/600 | Euro 4/5/6 |
| 110*147.3 | 300/400/600 | Euro 4/5/6 |
| 118*100 | 300/400/600 | Euro 4/5/6 |
| 118*127 | 300/400/600 | Euro 4/5/6 |
| 118*152.4 | 300/400/600 | Euro 4/5/6 |
| 118*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*100 | 300/400/600 | Euro 4/5/6 |
| 118.4*127 | 300/400/600 | Euro 4/5/6 |
| 118.4*138 | 300/400/600 | Euro 4/5/6 |
| 118.4*152.4 | 300/400/600 | Euro 4/5/6 |
| 118.4*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*70 | 300/400/600 | Euro 4/5/6 |
| 130*130 | 300/400/600 | Euro 4/5/6 |
| 130*80 | 300/400/600 | Euro 4/5/6 |
| 132*125 | 300/400/600 | Euro 4/5/6 |
| 143.8*101.6 | 300/400/600 | Euro 4/5/6 |
| 143.8*127 | 300/400/600 | Euro 4/5/6 |
| 143.8*148 | 300/400/600 | Euro 4/5/6 |
| 143.8*152.4 | 300/400/600 | Euro 4/5/6 |
| 143.8*76.2 | 300/400/600 | Euro 4/5/6 |
| 150*100 | 300/400/600 | Euro 4/5/6 |
| 151*115 | 300/400/600 | Euro 4/5/6 |
| 158*110 | 300/400/600 | Euro 4/5/6 |
| 158*90 | 300/400/600 | Euro 4/5/6 |
| 165.1*139.7 | 300/400/600 | Euro 4/5/6 |
| 170*100 | 300/400/600 | Euro 4/5/6 |
| 190*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*101.6 | 300/400/600 | Euro 4/5/6 |
| 190.5*152.4 | 300/400/600 | Euro 4/5/6 |
| 197*85 | 300/400/600 | Euro 4/5/6 |
| 240*100 | 300/400/600 | Euro 4/5/6 |
| 266.7*101.6 | 300/400/600 | Euro 4/5/6 |
| 266.7*152.4 | 300/400/600 | Euro 4/5/6 |
| 330.2*152.4 | 300/400/600 | Euro 4/5/6 |
| Komentar: | Ukuran lain dapat disesuaikan. | |
Spesifikasi dariDPF (Filter Partikulat Diesel):
| Spesifikasi | Diameter (mm) | Panjang (mm) |
Kepadatan Sel (CPSI) | Standar Emisi |
| 133*279 | 133 | 279 | 200/300 | Euro 5, Euro 6 |
| 135*180 | 135 | 180 | 200/300 | Euro 5, Euro 6 |
| 143.8*152.4 | 143.8 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 143.8*177.8 | 143.8 | 177.8 | 200/300 | Euro 5, Euro 6 |
| 143,8*200 | 143.8 | 200 | 200/300 | Euro 5, Euro 6 |
| 143,8*203,2 | 143.8 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 143.8*215.9 | 143.8 | 215.9 | 200/300 | Euro 5, Euro 6 |
| 143.8*228.622 | 143.8 | 228.6 | 200/300 | Euro 5, Euro 6 |
| 143.8*254 | 143.8 | 254 | 200/300 | Euro 5, Euro 6 |
| 144*304,8 | 144 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 152.4*304,8 | 152.4 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 160*100 | 160 | 100 | 200/300 | Euro 5, Euro 6 |
| 165*130 | 165 | 130 | 200/300 | Euro 5, Euro 6 |
| 170,2*203,2 | 170.2 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 172*152.4 | 172 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 190*304,8 | 190 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 190.5*100 | 190.5 | 100 | 200/300 | Euro 5, Euro 6 |
| 190,5*203 | 190.5 | 203 | 200/300 | Euro 5, Euro 6 |
| 190.5*203.2 | 190.5 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 190,5*304,8 | 190.5 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 215.9*304,8 | 215.9 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 228*228 | 228 | 228 | 200/300 | Euro 5, Euro 6 |
| 228*304,8 | 228 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 230*152.4 | 230 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 240*304,8 | 240 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 241.3*304,8 | 241.3 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 266.7*152.4 | 266.7 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 266.7*215 | 266.7 | 215 | 200/300 | Euro 5, Euro 6 |
| 266.7*279.4 | 266.7 | 279.4 | 200/300 | Euro 5, Euro 6 |
| 266.7*304,8 | 266.7 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 267*254 | 267 | 254 | 200/300 | Euro 5, Euro 6 |
| 267*305 | 267 | 305 | 200/300 | Euro 5, Euro 6 |
| 286*215 | 286 | 215 | 200/300 | Euro 5, Euro 6 |
| 286*305 | 286 | 305 | 200/300 | Euro 5, Euro 6 |
| 304.8*330.2 | 304.8 | 330.2 | 200/300 | Euro 5, Euro 6 |
| 305*254 | 305 | 254 | 200/300 | Euro 5, Euro 6 |
| 305*305 | 305 | 305 | 200/300 | Euro 5, Euro 6 |
| 330.2*152.4 | 330.2 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Komentar: | Ukuran lain dapat disesuaikan sesuai dengan kebutuhan pelanggan. | |||
Spesifikasi dariSCR (Selective Catalytic Reduction Catalyst):
| Spesifikasi | Diameter (mm) | Panjang (mm) | Kepadatan Sel (CPSI) | Standar Emisi |
| 130*130 | 130 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143.8*95 | 143.8 | 95 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143.8*152.4 | 143.8 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143,8*200 | 143.8 | 200 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 172*101.6 | 172 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 172*127 | 172 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190*100 | 190 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190 * 150 | 190 | 150 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190,5*76,2 | 190.5 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*101.6 | 190.5 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*127 | 190.5 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*152.4 | 190.5 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 228.6*203.2 | 228.6 | 203.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*50 | 240 | 50 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*76,2 | 240 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*100 | 240 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*130 | 240 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*152.4 | 240 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*160 | 240 | 160 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*190 | 240 | 190 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*101.6 | 241.3 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*127 | 241.3 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*152.4 | 241.3 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*177.8 | 241.3 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 263*127 | 263 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*76,2 | 266.7 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*101.6 | 266.7 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*127 | 266.7 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*152.4 | 266.7 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 286*120 | 286 | 120 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 304,8*101,6 | 304.8 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 304,8*120,65 | 304.8 | 120,65 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*101.6 | 330.2 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*127 | 330.2 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*152.4 | 330.2 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*177.8 | 330.2 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Komentar: | Ukuran lain dapat disesuaikan sesuai dengan kebutuhan pelanggan. | |||
