| Tempat asal: | WUXI, CHINA |
| Nama merek: | WEIFU |
| Sertifikasi: | ISO9001, IATF16949 |
| Nomor model: | Katalis Mesin Diesel |
| Kuantitas min Order: | 50 pcs |
|---|---|
| Harga: | Negotiable |
| Kemasan rincian: | karton dan kotak kayu lapis |
| Waktu pengiriman: | 30-60 hari setelah menerima setoran |
| Syarat-syarat pembayaran: | <i>T/T 30% as deposit, and 70% before delivery.</i> <b>T / T 30% sebagai deposit, dan 70% sebelum pe |
| Menyediakan kemampuan: | 1.200.000 PCS per tahun |
| Nama Produk: | Konverter Katalitik Pada Mobil Diesel | Bahan: | Keramik, logam |
|---|---|---|---|
| Bentuk: | bulat, persegi | Ukuran: | Dapat disesuaikan |
| Kepadatan Sel: | 200/300/400 CPSI | Aplikasi: | Mesin diesel |
| Model: | Universal | Standar emisi: | Euro 4, Euro 5, Euro 6, Tingkat 3, Tingkat 4, EPA3 |
| Tipe: | Euro4 Euro5 Oksidasi Mesin Diesel Katalis HC NOx PM Filter Partikulat Diesel Berbasis Sic | ||
| Cahaya Tinggi: | Katalis Oksidasi Mesin Diesel,euro4 euro5 Katalis Oksidasi Mesin Diesel,Katalis Mesin Diesel Oksidasi HC |
||

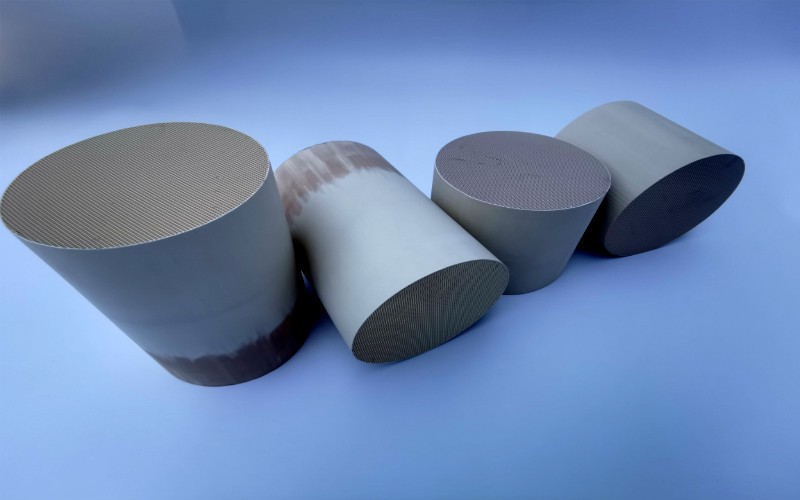

Sistem Setelah Perawatan Katalis Mesin Diesel Keramik/Logam/Wire-mesh
Katalis Mesin Diesel
Emisi dari mesin diesel semakin mengkhawatirkan regulator pemerintah di seluruh dunia.Mobil, truk, dan peralatan off-road yang menggunakan bahan bakar diesel adalah sumber hidrokarbon berbahaya (HC), nitrogen oksida (NOx), dan partikel (PM) yang mencemari udara dan terkait dengan penyakit pernapasan.
WFEC adalah pemasok terkemuka teknologi pengendalian emisi diesel yang hemat biaya dan efektif.WFEC memiliki fasilitas penelitian dan pengembangan diesel yang signifikan di seluruh dunia.Fasilitas ini digunakan untuk mengembangkan teknologi yang diperlukan untuk memenuhi tingkat emisi yang sangat rendah yang disebutkan dalam peraturan emisi baru.
Katalis Mesin Diesel terutama mencakup jenis berikut:
Teknologi ini dapat dikombinasikan untuk memenuhi peraturan emisi.
Rute Teknis Mesin Diesel Tugas Berat:
Rute Teknis Mesin Diesel Tugas Ringan:
Spesifikasi dariDOC (Katalis Oksidasi Diesel):
| Spesifikasi dari Keramik DOC |
Kepadatan Sel (CPSI) | Standar Emisi |
| 101.6*123,3 | 300/400/600 | Euro 4/5/6 |
| 101.6*152.4 | 300/400/600 | Euro 4/5/6 |
| 101.6*50 | 300/400/600 | Euro 4/5/6 |
| 101.6*90 | 300/400/600 | Euro 4/5/6 |
| 110*100 | 300/400/600 | Euro 4/5/6 |
| 110*147.3 | 300/400/600 | Euro 4/5/6 |
| 118*100 | 300/400/600 | Euro 4/5/6 |
| 118*127 | 300/400/600 | Euro 4/5/6 |
| 118*152.4 | 300/400/600 | Euro 4/5/6 |
| 118*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*100 | 300/400/600 | Euro 4/5/6 |
| 118.4*127 | 300/400/600 | Euro 4/5/6 |
| 118.4*138 | 300/400/600 | Euro 4/5/6 |
| 118.4*152.4 | 300/400/600 | Euro 4/5/6 |
| 118.4*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*70 | 300/400/600 | Euro 4/5/6 |
| 130*130 | 300/400/600 | Euro 4/5/6 |
| 130*80 | 300/400/600 | Euro 4/5/6 |
| 132*125 | 300/400/600 | Euro 4/5/6 |
| 143.8*101.6 | 300/400/600 | Euro 4/5/6 |
| 143.8*127 | 300/400/600 | Euro 4/5/6 |
| 143.8*148 | 300/400/600 | Euro 4/5/6 |
| 143.8*152.4 | 300/400/600 | Euro 4/5/6 |
| 143.8*76.2 | 300/400/600 | Euro 4/5/6 |
| 150*100 | 300/400/600 | Euro 4/5/6 |
| 151*115 | 300/400/600 | Euro 4/5/6 |
| 158*110 | 300/400/600 | Euro 4/5/6 |
| 158*90 | 300/400/600 | Euro 4/5/6 |
| 165.1*139.7 | 300/400/600 | Euro 4/5/6 |
| 170*100 | 300/400/600 | Euro 4/5/6 |
| 190*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*101.6 | 300/400/600 | Euro 4/5/6 |
| 190.5*152.4 | 300/400/600 | Euro 4/5/6 |
| 197*85 | 300/400/600 | Euro 4/5/6 |
| 240*100 | 300/400/600 | Euro 4/5/6 |
| 266.7*101.6 | 300/400/600 | Euro 4/5/6 |
| 266.7*152.4 | 300/400/600 | Euro 4/5/6 |
| 330.2*152.4 | 300/400/600 | Euro 4/5/6 |
| Komentar: | Ukuran lain dapat disesuaikan. | |
Spesifikasi dariDPF (Filter Partikulat Diesel):
| Spesifikasi | Diameter (mm) | Panjang (mm) |
Kepadatan Sel (CPSI) | Standar Emisi |
| 133*279 | 133 | 279 | 200/300 | Euro 5, Euro 6 |
| 135*180 | 135 | 180 | 200/300 | Euro 5, Euro 6 |
| 143.8*152.4 | 143.8 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 143.8*177.8 | 143.8 | 177.8 | 200/300 | Euro 5, Euro 6 |
| 143,8*200 | 143.8 | 200 | 200/300 | Euro 5, Euro 6 |
| 143,8*203,2 | 143.8 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 143.8*215.9 | 143.8 | 215.9 | 200/300 | Euro 5, Euro 6 |
| 143.8*228.622 | 143.8 | 228.6 | 200/300 | Euro 5, Euro 6 |
| 143.8*254 | 143.8 | 254 | 200/300 | Euro 5, Euro 6 |
| 144*304,8 | 144 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 152.4*304,8 | 152.4 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 160*100 | 160 | 100 | 200/300 | Euro 5, Euro 6 |
| 165*130 | 165 | 130 | 200/300 | Euro 5, Euro 6 |
| 170,2*203,2 | 170.2 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 172*152.4 | 172 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 190*304,8 | 190 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 190.5*100 | 190.5 | 100 | 200/300 | Euro 5, Euro 6 |
| 190,5*203 | 190.5 | 203 | 200/300 | Euro 5, Euro 6 |
| 190.5*203.2 | 190.5 | 203.2 | 200/300 | Euro 5, Euro 6 |
| 190,5*304,8 | 190.5 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 215.9*304,8 | 215.9 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 228*228 | 228 | 228 | 200/300 | Euro 5, Euro 6 |
| 228*304,8 | 228 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 230*152.4 | 230 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 240*304,8 | 240 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 241.3*304,8 | 241.3 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 266.7*152.4 | 266.7 | 152.4 | 200/300 | Euro 5, Euro 6 |
| 266.7*215 | 266.7 | 215 | 200/300 | Euro 5, Euro 6 |
| 266.7*279.4 | 266.7 | 279.4 | 200/300 | Euro 5, Euro 6 |
| 266.7*304,8 | 266.7 | 304.8 | 200/300 | Euro 5, Euro 6 |
| 267*254 | 267 | 254 | 200/300 | Euro 5, Euro 6 |
| 267*305 | 267 | 305 | 200/300 | Euro 5, Euro 6 |
| 286*215 | 286 | 215 | 200/300 | Euro 5, Euro 6 |
| 286*305 | 286 | 305 | 200/300 | Euro 5, Euro 6 |
| 304.8*330.2 | 304.8 | 330.2 | 200/300 | Euro 5, Euro 6 |
| 305*254 | 305 | 254 | 200/300 | Euro 5, Euro 6 |
| 305*305 | 305 | 305 | 200/300 | Euro 5, Euro 6 |
| 330.2*152.4 | 330.2 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Komentar: | Ukuran lain dapat disesuaikan sesuai dengan kebutuhan pelanggan. | |||
Spesifikasi dariSCR (Selective Catalytic Reduction Catalyst):
| Spesifikasi | Diameter (mm) | Panjang (mm) | Kepadatan Sel (CPSI) | Standar Emisi |
| 130*130 | 130 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143.8*95 | 143.8 | 95 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143.8*152.4 | 143.8 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 143,8*200 | 143.8 | 200 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 172*101.6 | 172 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 172*127 | 172 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190*100 | 190 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190 * 150 | 190 | 150 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190,5*76,2 | 190.5 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*101.6 | 190.5 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*127 | 190.5 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 190.5*152.4 | 190.5 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 228.6*203.2 | 228.6 | 203.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*50 | 240 | 50 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*76,2 | 240 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*100 | 240 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*130 | 240 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*152.4 | 240 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*160 | 240 | 160 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 240*190 | 240 | 190 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*101.6 | 241.3 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*127 | 241.3 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*152.4 | 241.3 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 241.3*177.8 | 241.3 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 263*127 | 263 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*76,2 | 266.7 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*101.6 | 266.7 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*127 | 266.7 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 266.7*152.4 | 266.7 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 286*120 | 286 | 120 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 304,8*101,6 | 304.8 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 304,8*120,65 | 304.8 | 120,65 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*101.6 | 330.2 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*127 | 330.2 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*152.4 | 330.2 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| 330.2*177.8 | 330.2 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Komentar: | Ukuran lain dapat disesuaikan sesuai dengan kebutuhan pelanggan. | |||
